DESCRIPTION

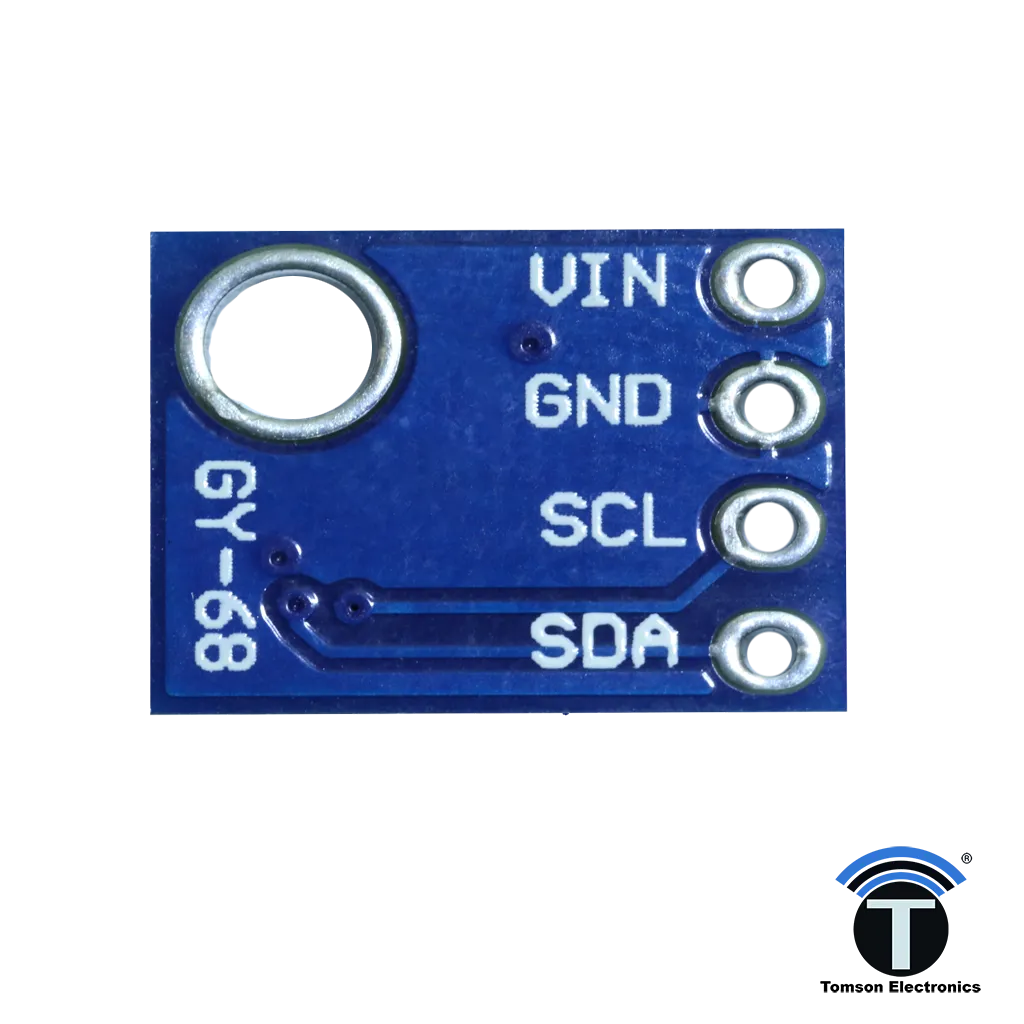

BMP180 Sensor is an extremely precise low cost sensor from Bosch for measuring barometric pressure and temperature. Because pressure changes with altitude you can also use it as an altimeter! The sensor is soldered onto a PCB with a 3.3V regulator, I2C level shifter and pull-up resistors on the I2C pins. It is completely identical to the BMP085 in terms of firmware/software. BMP 180 Pressure Sensor Module Arduino available at Tomson Electronics, Kochi, Kerala, India is the best quality product

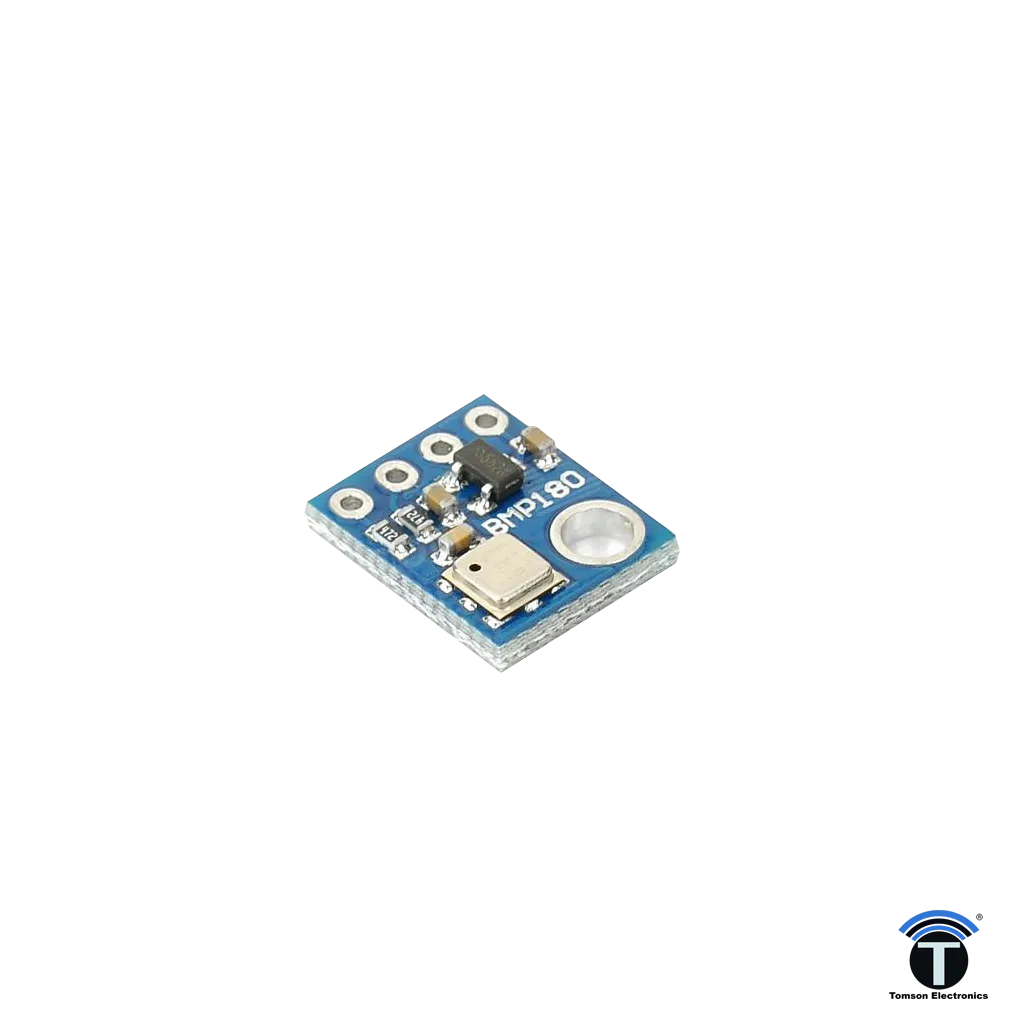

This is a breakout board for the Bosch BMP180 high-precision, low-power digital barometer. The BMP180 offers a pressure measuring range of 300 to 1100 hPa with an accuracy down to 0.02 hPa in advanced resolution mode. It’s based on piezo-resistive technology for high accuracy, ruggedness and long term stability.

DEVELOPMENT SOURCES

to download the BMP Library and example code for Arduino

FEATURES

• 1.8V to 3.6V Supply Voltage
• Low power consumption - 0.5uA at 1Hz
• I2C interface
• Max I2C Speed: 3.5Mhz
• Very low noise - up to 0.02hPa (17cm)
• Full calibrated
• Pressure Range: 300hPa to 1100hPa ( 9000m to -500m)
• Size: 13mm x 10mm

APPLICATIONS

• Temperature, pressure and altitude measurements using BMP180
